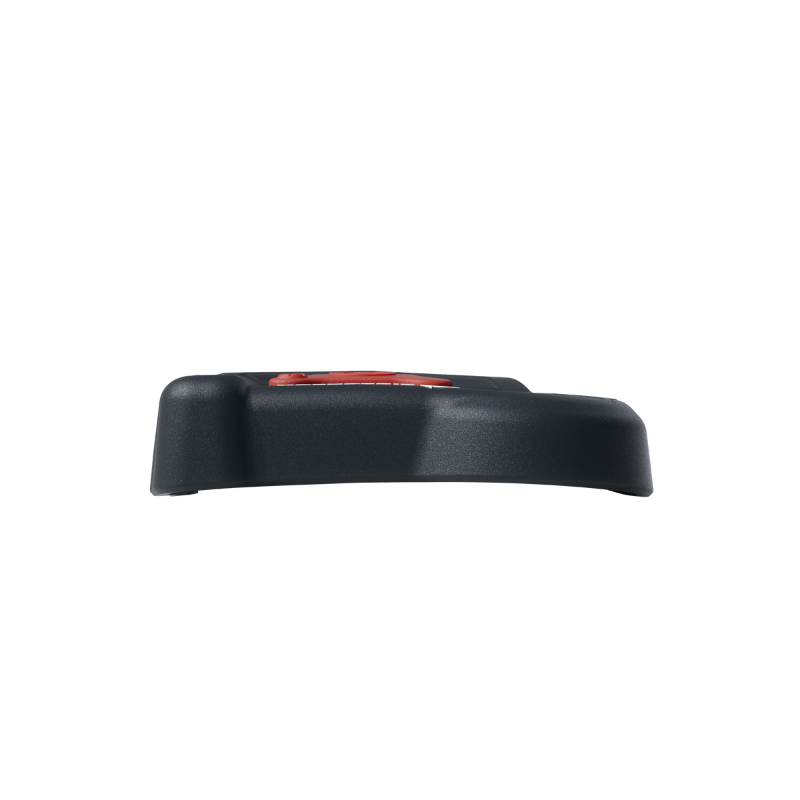

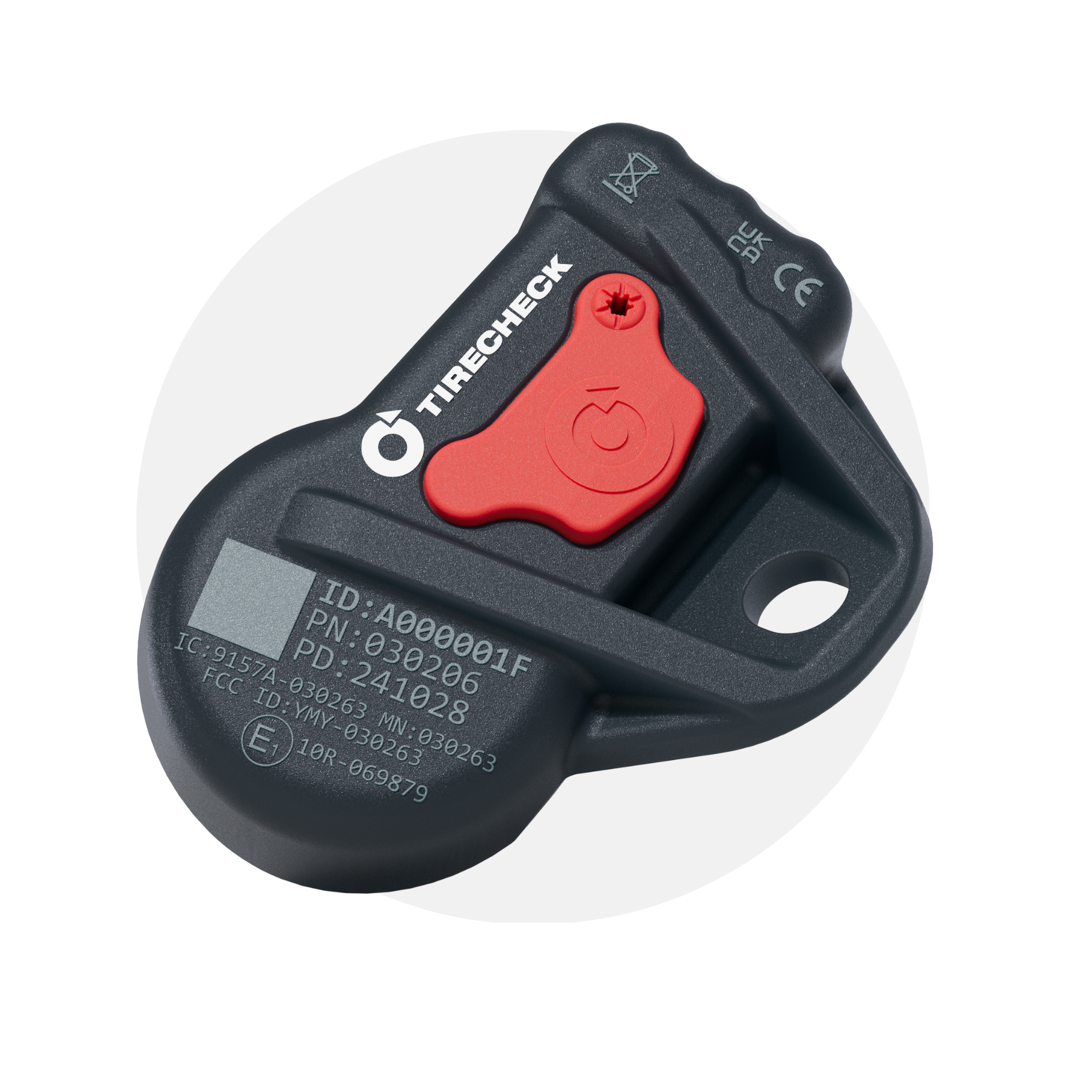

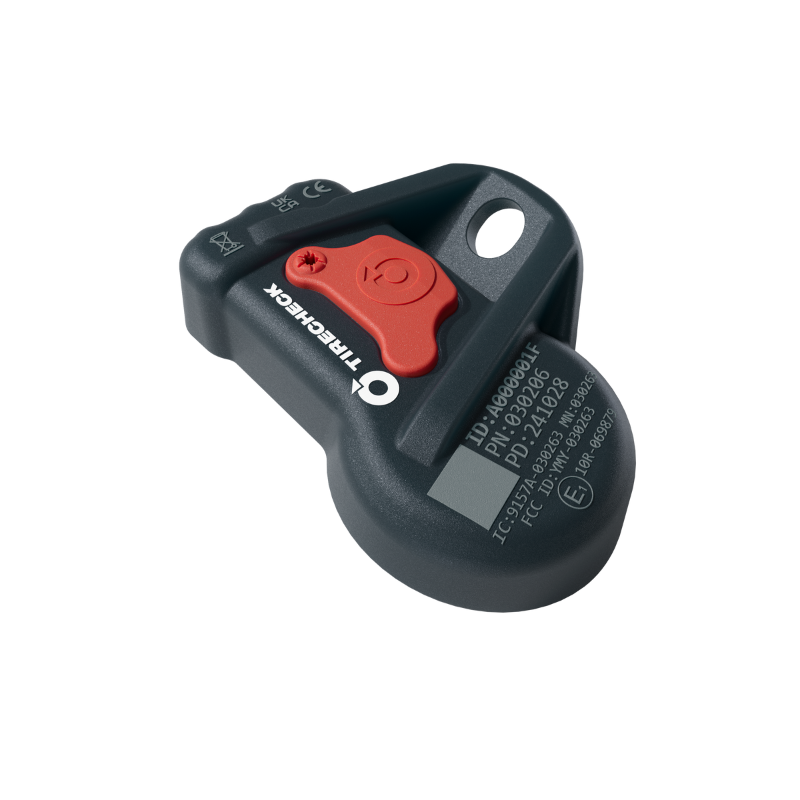

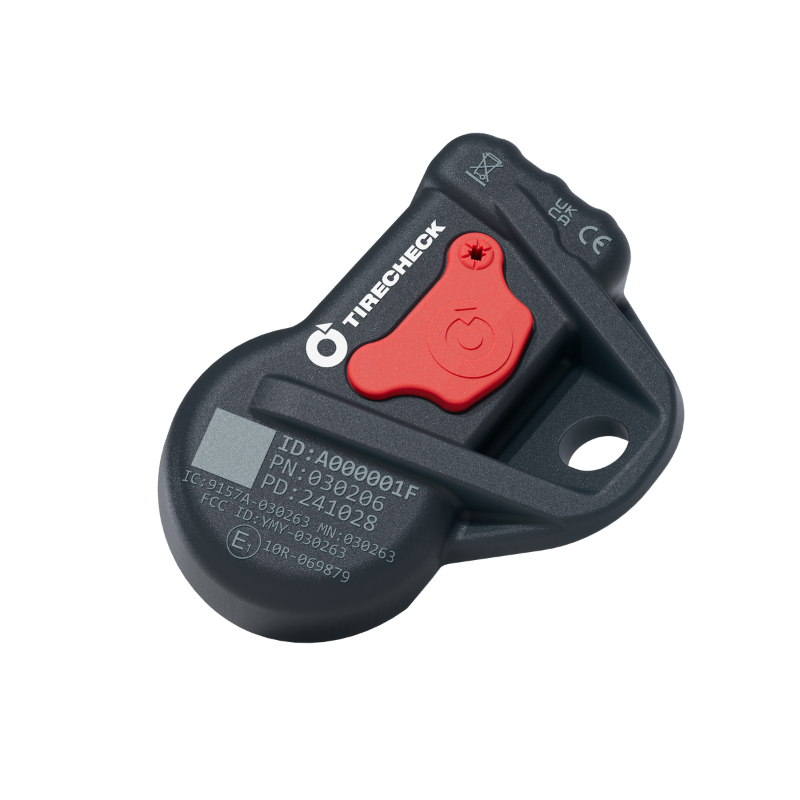

Internal Valve Mounted TPMS Sensor

  • Suitable for

    Light, Medium & Heavy-Duty Commercial Vehicles

  • Communication

    Radio Frequency

The TireCheck Internal Valve Mounted TPMS Sensor is designed for ease of installation on ETRTO / ISO-compliant wheel designs. The sensor attaches to the bottom of the special TPMS tire valve using an M6 bolt to ensure a reliable connection.
Quality

Quality and Reliability

TireCheck offers quality and expertise you can trust. Our sensor manufacturing process is fully automated and based in Germany.

OEM

OEM Ready

The TireCheck Internal Valve Mounted TPMS Sensor is manufactured according to the strictest automotive standards.

data flow

Continuous Dataflow

Tire pressure and wheel temperature are measured precisely with data transmitted regularly to a suitable receiver.

Custom

Autolocation Ready

The valve-attached sensor design allows reliable detection of wheel rotation to support state-of-the-art autolocation procedures to determine the wheel position.

Specification

PART NUMBER: 030206

PRESSURE RANGE: 0-12 Bar

OPERATING TEMPERATURE: -40°C to +125°C

SPEED LIMIT: Up to 140 km/h

RADIO FREQUENCY: 433,92 MHz

LF-TRIGGER FREQUENCY: 125 kHz

POWER SUPPLY: 3V Battery

TYPICAL BATTERY LIFETIME: 5 Years

WEIGHT: 19 g

DIMENSIONS: 27 x 36 x 56 mm

DATA TRANSMISSION: 2-Minute Interval
